Line UV-LED unit

Feature

The LED irradiation unit features: longer life and lower power consumption than the lamp, and processability without heat damage to irradiated objects.
We have achieved higher output power in the UV-LED irradiation unit with our original lens designed using our optical technologies.
We are capable of customizing the deep UV-LED sterilization unit to meet customers' requirements.


Application

  • UV Cure
  • adhesion ,Drying

Characteristics

Peak Wavelength
(nm)		 Standard Power
Rediation Power(mW/cm2		 High Power
Rediation Power(mW/cm2
365 300 2000
385 300 2000
405 300 2000

Examples of products

Specification


Reference illuminance WD = 6mm 2000mW/cm2
window area 14×200mm
Cooling Water cooling
Dimensions 218×33×70mm
Power supply voltage AC100V 300W
MAIL

Line UV-LED unit

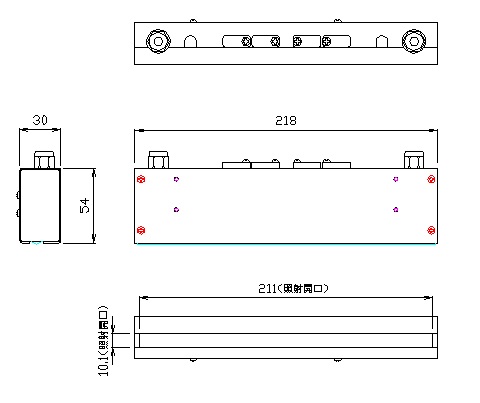

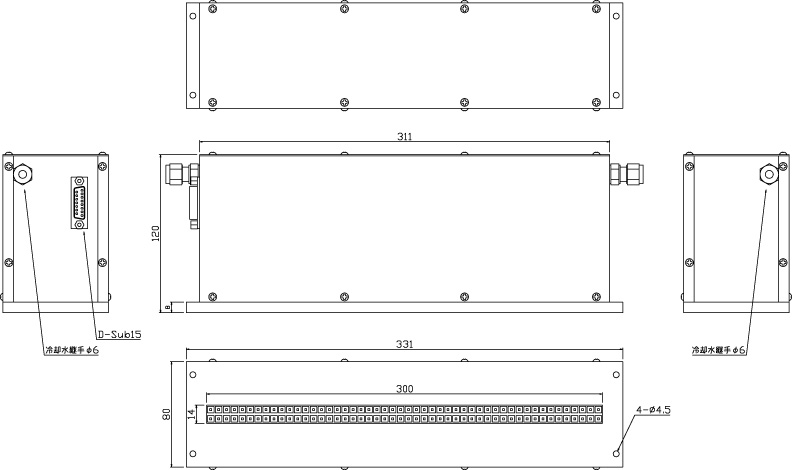

Drawing
* Expansion window by click.

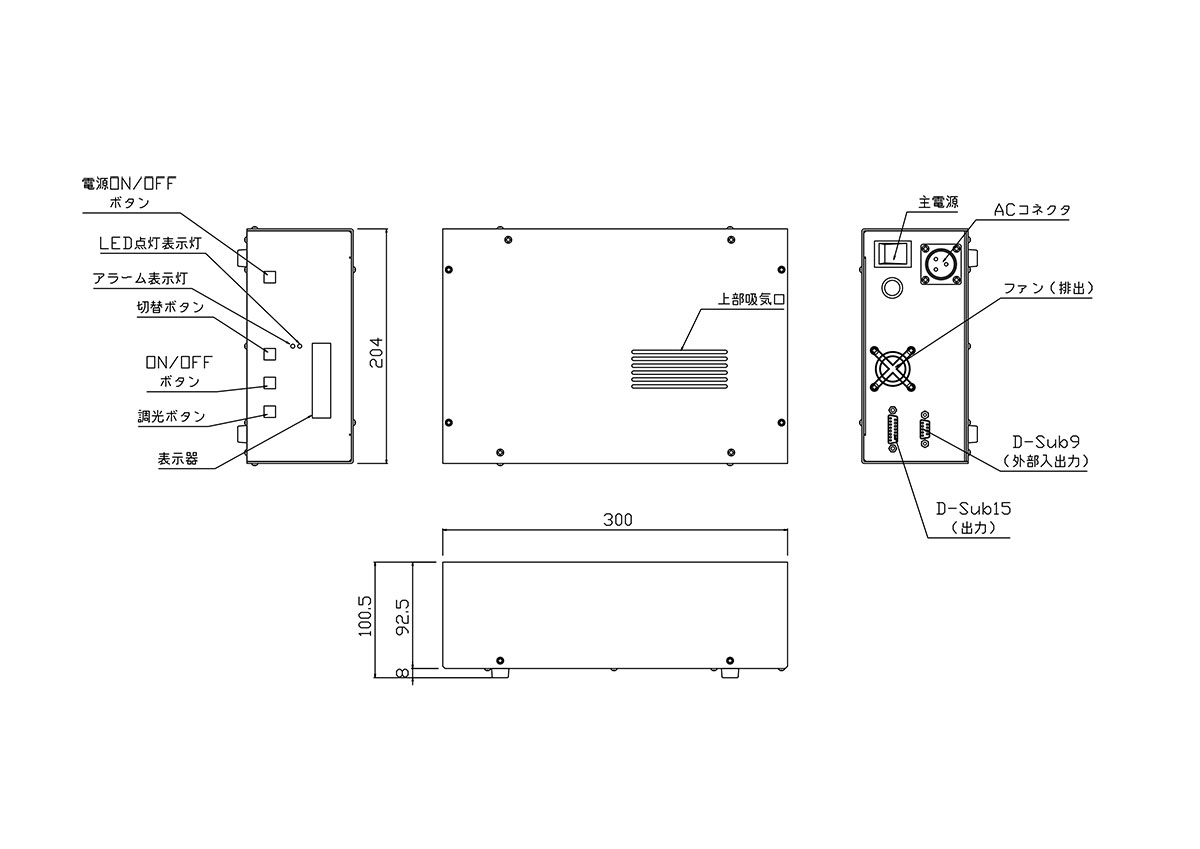

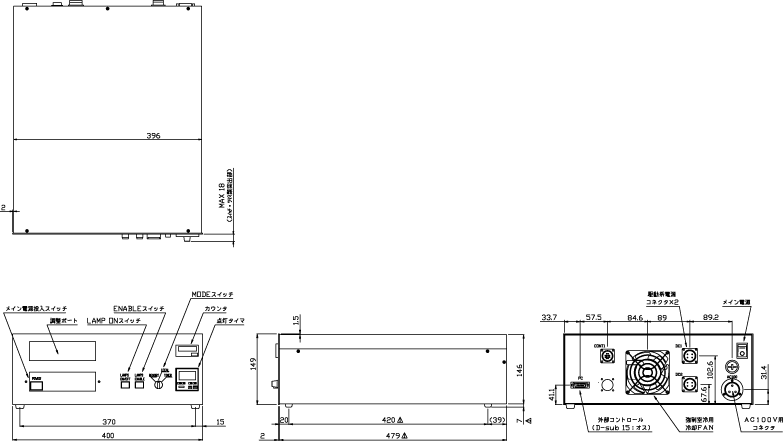

Power supply unit Drawing
* Expansion window by click.


wavelength spectrum
