UV-LED irradiation unit

Top page Products information Aspect irradiation UV-LED unit

Aspect irradiation UV-LED unit

Feature

The LED irradiation unit features: longer life and lower power consumption than the lamp, and processability without heat damage to irradiated objects.
It can also irradiate a large area, which is not possible with the conventional spot type irradiation unit.
We are capable of customizing the deep UV-LED sterilization unit to meet customers' requirements.


Application

  • UV Cure
  • adhesion ,Drying

Characteristics

Peak Wavelength
(nm)		 Standard Power
Rediation Power(mW/cm2)		 High Power
Rediation Power(mW/cm2)
365 100 500
385 100 500
405 100 500

Examples of products

Specification


Reference illuminance WD = 30mm 500mW/cm2
window area 320×200mm
Cooling Water cooling
Dimensions 420×300×35mm
Power supply voltage AC100V 1KW
MAIL

Aspect irradiation UV-LED unit

* Expansion window by click.

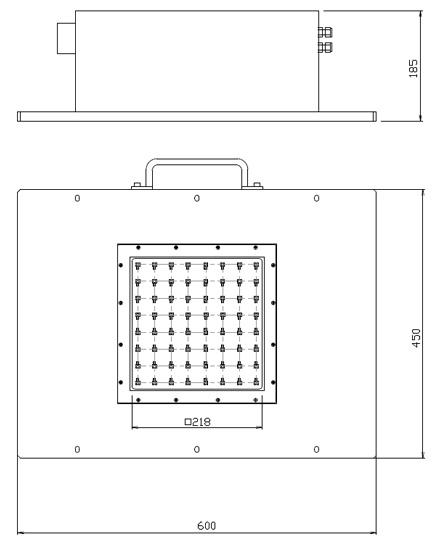

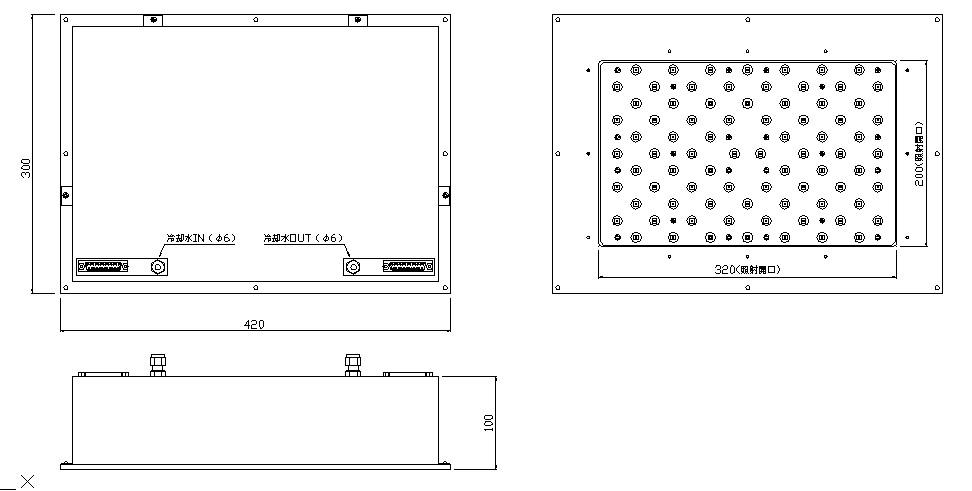

Drawing

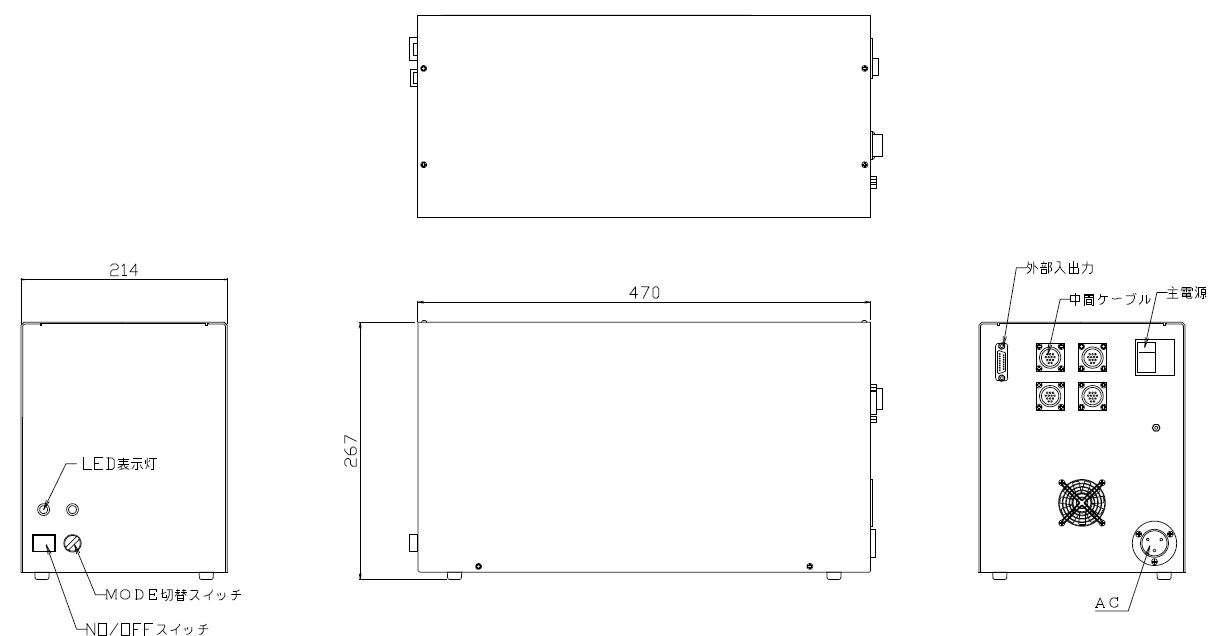

Power supply unit Drawing
* Expansion window by click.


wavelength spectrum
